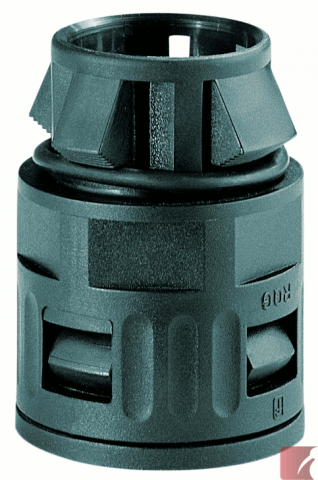

RQG1-S 18 mm Push Lock Straight Connector
5020.082.211
Description
PG 11 push lock FLEXAquick® straight connector, for 15.8 mm OD conduit, made of polyamide
Use with a 18.0 mm knockout hole size.
IP 66 sealing level
-40ºC to +115ºC
- no locknut required
- for wall thicknesses from 1 to 2.5 mm
- O-ring included
- resistant oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- Use with ROHRflex® corrugated conduits
Specifications
Connector Thread:
PG 11
Sealing Level:
IP66
Colour:
Black
Weight:
0.0076 kg
Package quantity:
50

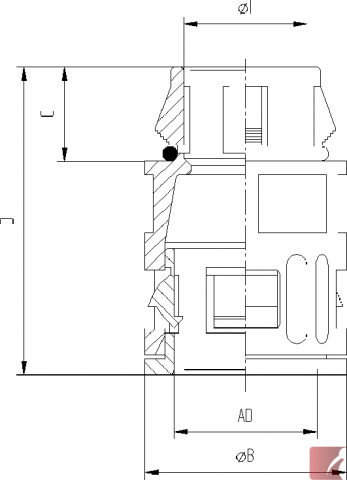

Dimensions:
φ I:
12.50
φ B:
23.00
C:
13.50
D:
40.50
Conduit OD:
15.8 mm
Datasheet
Certifications
CSA 22.2
# 227.3-05
