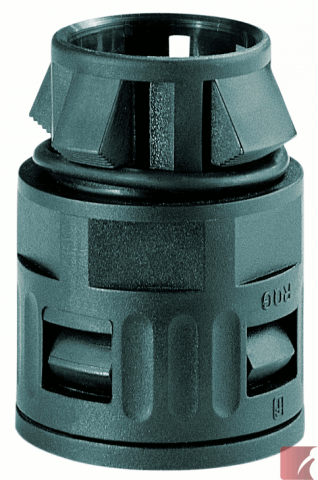

RQG1-S 28 mm Push Lock Straight Connector
5020.082.221
Description
PG 21 push lock FLEXAquick® straight connector, for 28.5 mm OD conduit, made of polyamide
Use with a 28.0 mm knockout hole size.
IP 66 sealing level
-40ºC to +115ºC
- no locknut required
- for wall thicknesses from 1 to 2.5 mm
- O-ring included
- resistant oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- Use with ROHRflex® corrugated conduits
Specifications
Connector Thread:
PG 21
Sealing Level:
IP66
Colour:
Black
Weight:
0.0232 kg
Package quantity:
25
Dimensions:
φ I:
23.50
φ B:
37.00
C:
17.90
D:
51.90
Conduit OD:
28.5 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05
