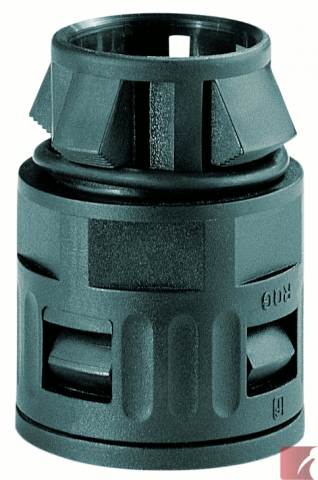

RQG1-S 37 mm Push Lock Straight Connector
5020.082.229

Description


PG 29 push lock FLEXAquick® straight connector, for 34.5 mm OD conduit, made of polyamide

Use with a 37.0 mm knockout hole size

IP 66 sealing level

-40ºC to +115ºC

  • no locknut required
  • for wall thicknesses from 1 to 2.5 mm
  • O-ring included
  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
PG 29
Sealing Level:
IP66
Colour:
Black
Weight:
0.0248 kg
Package quantity:
25

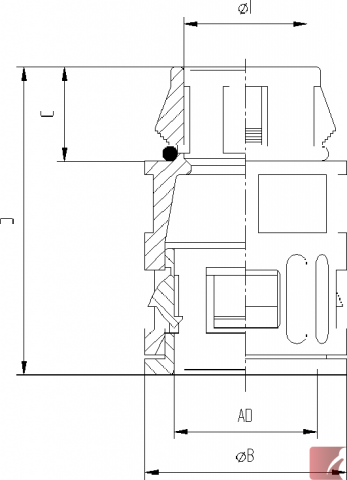

Dimensions:
φ I:
30.50
φ B:
44.00
C:
18.70
D:
54.70
Conduit OD:
34.5 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05

Alternate SKU Numbers

5020-082-229 | 5020082229 | 5020 082 229 | 5020_082_229 | 5020/082/229 | 5020,082,229 | 5020+082+229
