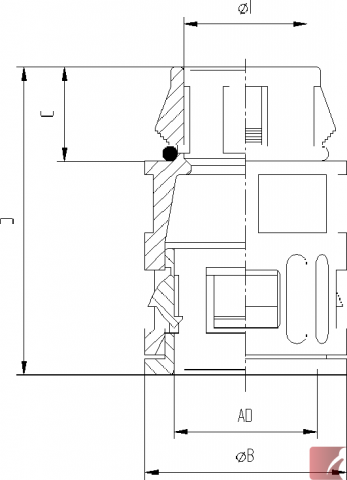

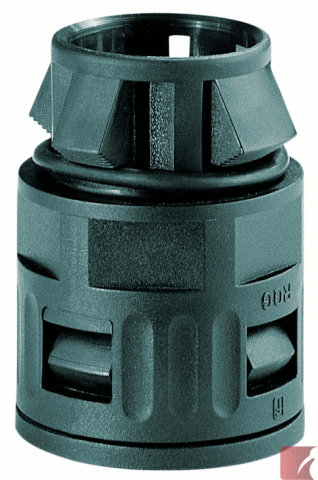

PG 36 push lock FLEXAquick® straight connector, for 42.5 mm OD conduit, made of polyamide

Use with a 47.0 mm knockout hole size

IP 66 sealing level

-40ºC to +115ºC

• no locknut required
• for wall thicknesses from 1 to 2.5 mm
• O-ring included
• resistant oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen
• Use with ROHRflex® corrugated conduits
