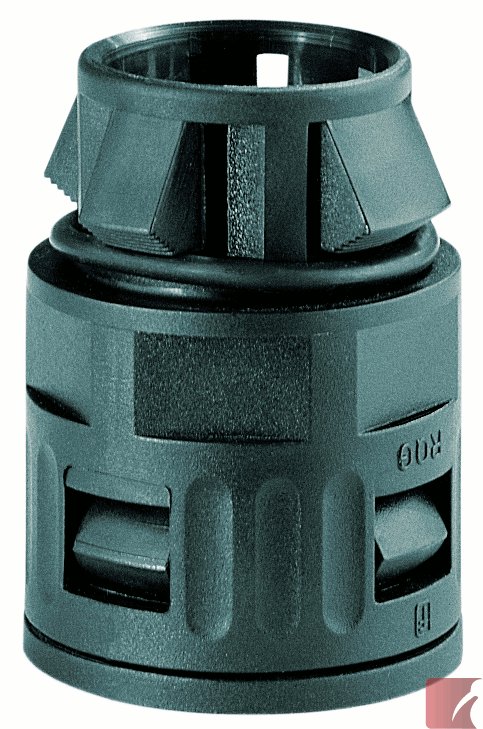

RQG1-S 12 mm Push Lock Straight Connector
5020.382.212

Description


M12 x 1.5 mm push lock FLEXAquick® straight connector, for 13.0 mm OD conduit, made of polyamide

Use with a 12.0 mm knockout hole size

IP 66 sealing level

-40ºC to +115ºC

  • no locknut required
  • for wall thicknesses from 1 to 2.5 mm
  • O-ring included
  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
M12 x 1.5 mm
Sealing Level:
IP66
Colour:
Black
Weight:
0.006 kg
Package quantity:
50

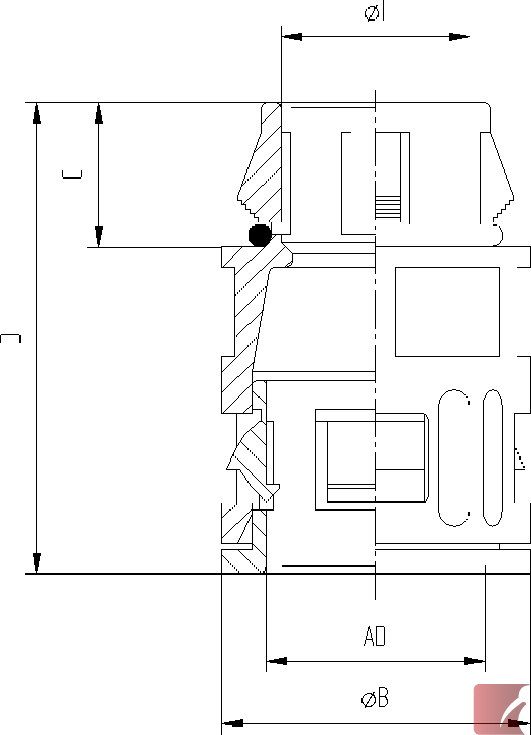

Dimensions:
φ I:
9.00
φ B:
20.00
C:
12.00
D:
37.00
Conduit OD:
13.0 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
