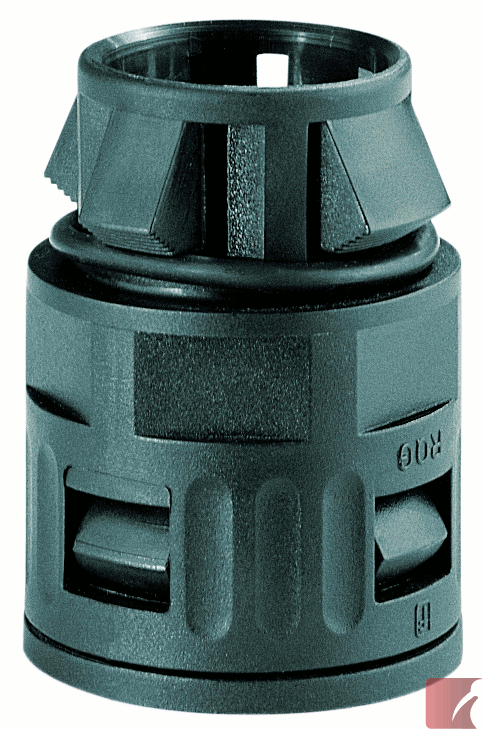

RQG1-S 16 mm Push Lock Straight Connector
5020.382.216
Description
M16 x 1.5 mm push lock FLEXAquick® straight connector, for 15.8 mm OD conduit, made of polyamide
Use with a 16.0 mm knockout hole size
IP 66 sealing level
-40ºC to +115ºC
- no locknut required
- for wall thicknesses from 1 to 2.5 mm
- O-ring included
- resistant oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- Use with ROHRflex® corrugated conduits
Specifications
Connector Thread:
M16 x 1.5 mm
Sealing Level:
IP66
Colour:
Black
Weight:
0.007 kg
Package quantity:
50

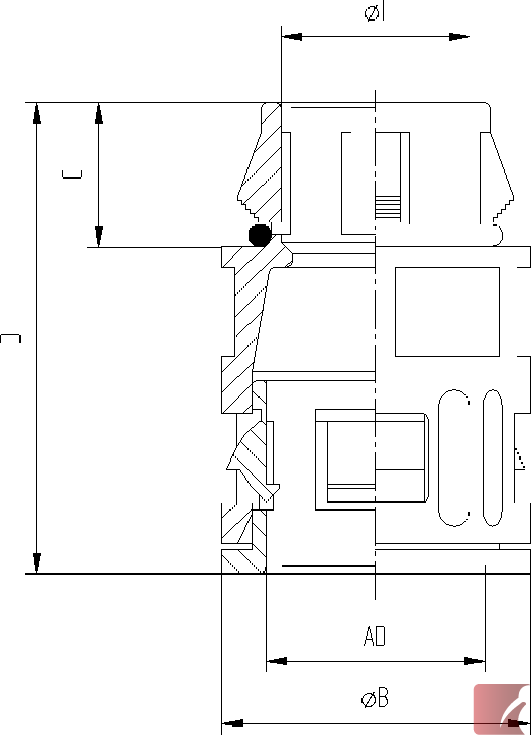

Dimensions:
φ I:
11.80
φ B:
23.00
C:
13.50
D:
40.50
Conduit OD:
15.8 mm
Datasheet
Certifications
CSA 22.2
# 227.3-05
Alternate SKU Numbers
5020-382-216 | 5020382216 | 5020 382 216 | 5020_382_216 | 5020/382/216 | 5020,382,216 | 5020+382+216
