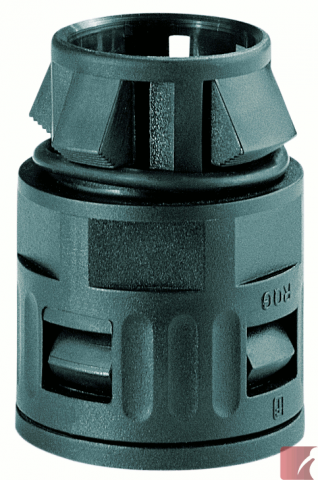

RQG1-S 25 mm Push Lock Straight Connector
5020.382.225
Description
M25 x 1.5 mm push lock FLEXAquick® straight connector, for 28.5 mm OD conduit, made of polyamide
Use with a 25.0 mm knockout hole size
IP 66 sealing level
-40ºC to +115ºC
- no locknut required
- for wall thicknesses from 1 to 2.5 mm
- O-ring included
- resistant oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- Use with ROHRflex® corrugated conduits
Specifications
Connector Thread:
M25 x 1.5 mm
Sealing Level:
IP66
Colour:
Black
Weight:
0.0192 kg
Package quantity:
25

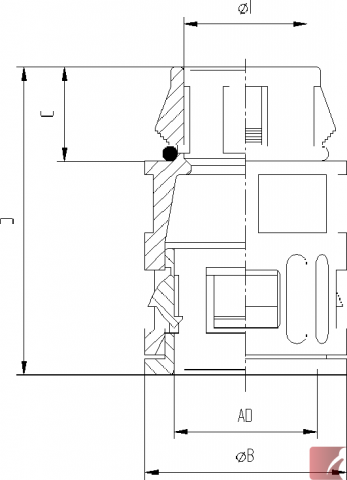

Dimensions:
φ I:
21.00
φ B:
37.00
C:
17.50
D:
51.00
Conduit OD:
28.5 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05




Alternate SKU Numbers
5020-382-225 | 5020382225 | 5020 382 225 | 5020_382_225 | 5020/382/225 | 5020,382,225 | 5020+382+225
