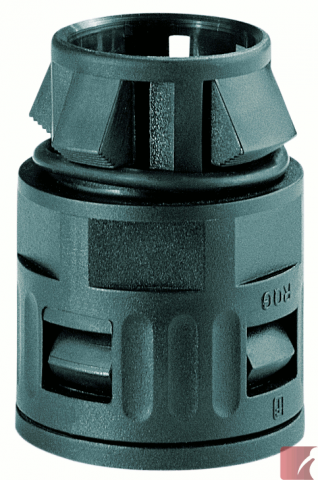

RQG1-S 50 mm Push Lock Straight Connector
5020.382.250
Description
M50 x 1.5 mm push lock FLEXAquick® straight connector, for 54.5 mm OD conduit, made of polyamide
Use with a 50.0 mm knockout hole size
IP 66 sealing level
-40ºC to +115ºC
- no locknut required
- for wall thicknesses from 1 to 2.5 mm
- O-ring included
- resistant oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- Use with ROHRflex® corrugated conduits
Specifications
Connector Thread:
M50 x 1.5 mm
Sealing Level:
IP66
Colour:
Black
Weight:
0.037 kg
Package quantity:
10

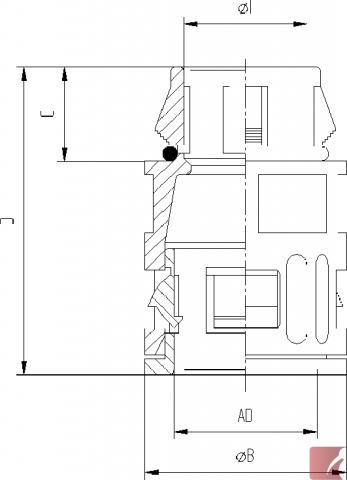

Dimensions:
φ I:
43.00
φ B:
64.00
C:
21.00
D:
63.00
Conduit OD:
54.5 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05
