PL5-177-6F PL5 Series Economical Guide Chain
6025.177.006
Description

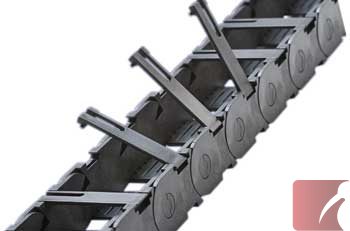

PL5 Series Economical Guide Chain
Model Specific:
- Article # PL5-177-6F

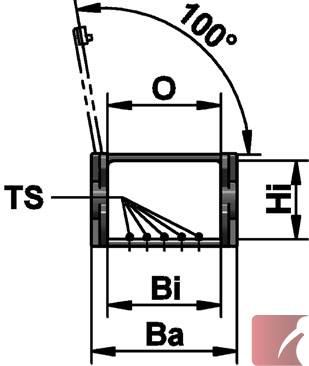

- Inner width Bi - 177 mm
- Radius - 60 mm
- Outer width Ba - 191 mm
- Bow length - 240 mm
- Number of separators - 21
- Delivered in sections of 1 metre
Material:
- Polyamide 6 GFK Plastics
- -40ºC to +135ºC
PL5 Series Technical Data:
- Inner height Hi 34 mm
- Outer height Ha 40 mm
- Number of chain links/meter 18

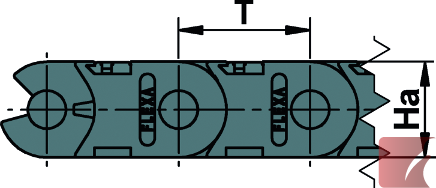

- Pitch T 55 mm

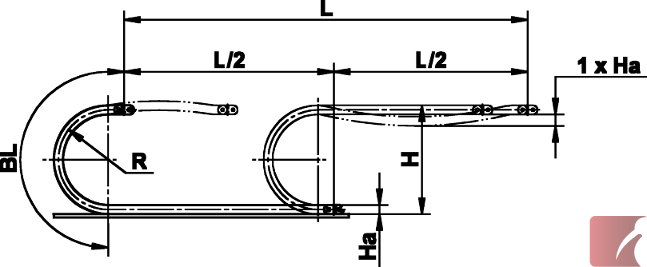

- Guide chain length approx. L/2 + BL
- Total height approx. 2xR + Ha
- Free carrying length max. 3100 mm
- Travel standard L max. 75 m
- Travel in channel max. 120 m
- Load max. 8.0 kg/m
- Speed max. 10 m/sec
- Acceleration max. 10 m/sec²
- Tensile strength max. 4300 N
- Separator thickness 2.0 mm
Properties:
- hinged openings, quick & easy to use
- optimized wall thickness/interior ratio
- economical
- loadable across entire inner chain width
- extended life design
Applications:
- Excellent for robotics, mining, railway / bus, shipbuilding and general machine / automation wiring

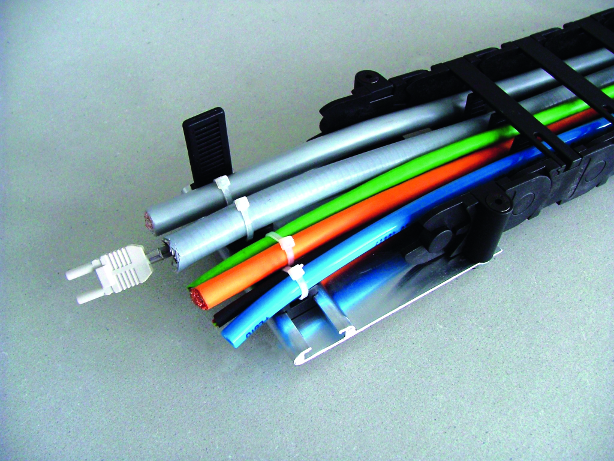

- Cover and protect cables, wires, hydraulic & pneumatic hoses
Specifications
Color:
Black
Weight:
1.29 kg / metre
Package Quantity:
1
