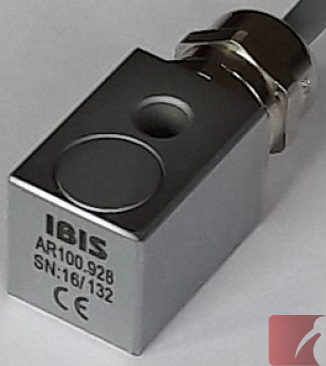

IBIS 100 mV/g Accelerometer - Bearing Vibration Sensor with 2.5 metre (7 ft) PUR Cable & XLR/5 connector
AR100.928.025XLR

Description

IBIS 100 mV/g Accelerometer for vibration and bearing condition monitoring, with 2.5 metre (7 ft) PUR jacketed Cable & XLR/5 connector

Highlights:

Designed for permanently installed machine & bearing vibration monitoring.

Output is temperature compensated to maintain high transducer resonance with increased operating temperatures.

Self-contained, compact sensor technology

Heavy-Duty stainless steel construction.

Very easy to install using a single thru-hole mounting machine screw.

Technical Data:

  • Sensor type: Piezoelectric accelerometer element, PZT - Shear
  • Sensitivity: 100mV/g +/- 10%
  • Resolution: 0.001 g
  • Shock Resistance: max. 5000 g
  • Frequency Response: 0.5 to 10,000 Hz, +/- 3 dB
  • Spike energy measurement: 5,000 to 50,000 Hz
  • Resonance Frequency: > 25 kHz

External details:

  • Power Supply: +18 to 28 VDC, currrent 2 - 10mA
  • Temperature range for sensor: -40ºC to +120ºC
  • Temperature range for the cable: -40ºC to +70ºC
  • Housing: Robust, stainless steel cuboid, IP 67 sealing level

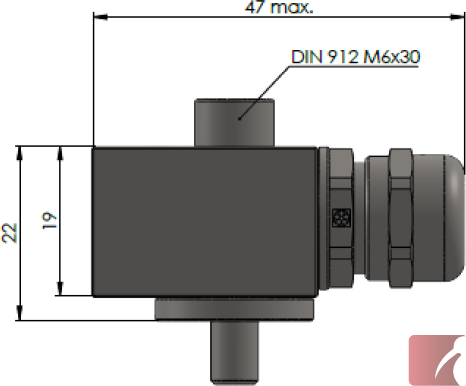

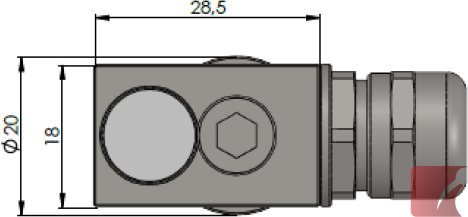

  • Mounting: Single M5 or M6 screw thru-hole mount
  • Weight: 40 grams
  • Connection: XLR/5 connector with 2 wire + shield, PUR jacketed cable, length 2.5 metres
  • Cable Diameter: 4.6 mm

Applications for Vibration Acceleration Sensors:

  • Bearing housing or absolute casing vibration
  • Monitoring of / for high-frequency vibrations
  • Vibrations from rolling element bearings or gearboxes
  • General bearing condition and wear
  • Sense mechanical wear and degradation before serious machine breakdown

Specifications

Colour:
Silver
Weight:
0.1 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Accelerometer - Vibration
Sensor Connection:
Cable
Sensor Housing Size:
Cuboid
Sensor Output:
Analogue 0-10V
Sensor Ring Diameter:
21 mm

Certifications

Alternate SKU Numbers

AR100-928-025XLR | AR100928025XLR | AR100 928 025XLR | AR100+928+025XLR | AR100/928/025XLR | AR100,928,025XLR
