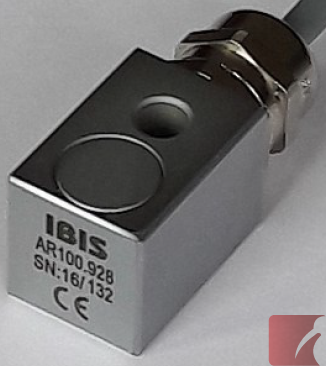

IBIS 100 mV/g Accelerometer for vibration and bearing condition monitoring, with 10.0 metre (33 ft) PUR jacketed Cable & XLR/5 connector

Highlights:

Designed for permanently installed machine & bearing vibration monitoring.

Output is temperature compensated to maintain high transducer resonance with increased operating temperatures.

Self-contained, compact sensor technology

Heavy-Duty stainless steel construction.

Very easy to install using a single thru-hole mounting machine screw.

Technical Data:

• Sensor type: Piezoelectric accelerometer element, PZT - Shear
• Sensitivity: 100mV/g +/- 10%
• Resolution: 0.001 g
• Shock Resistance: max. 5000 g
• Frequency Response: 0.5 to 10,000 Hz, +/- 3 dB
• Spike energy measurement: 5,000 to 50,000 Hz
• Resonance Frequency: > 25 kHz

External details:

• Power Supply: +18 to 28 VDC, currrent 2 - 10mA
• Temperature range for sensor: -40ºC to +120ºC
• Temperature range for the cable: -40ºC to +70ºC
• Housing: Robust, stainless steel cuboid, IP 67 sealing level

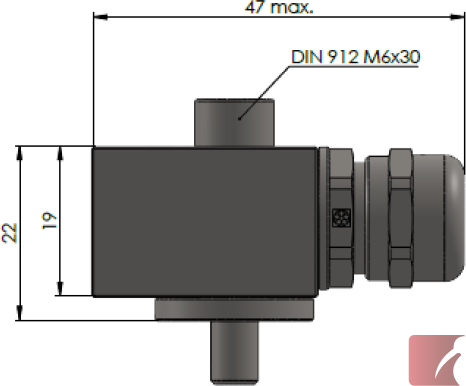

• Mounting: Single M5 or M6 screw thru-hole mount
• Weight: 40 grams
• Connection: XLR/5 connector with 2 wire + shield, PUR jacketed cable, length 10.0 metres
• Cable Diameter: 4.6 mm

Applications for Vibration Acceleration Sensors:

• Bearing housing or absolute casing vibration
• Monitoring of / for high-frequency vibrations
• Vibrations from rolling element bearings or gearboxes
• General bearing condition and wear
• Sense mechanical wear and degradation before serious machine breakdown
