Supply Voltage: 10 - 30 VAC or VDC

Overview:

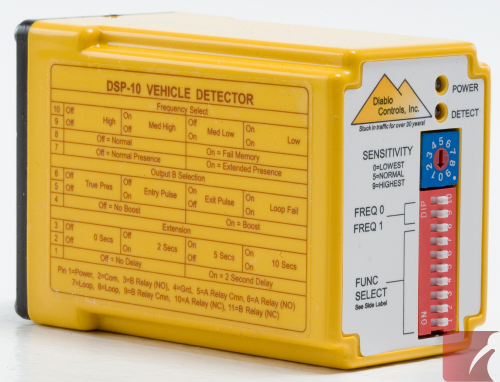

• Full featured inductive vehicle detector by Diablo Controls Inc.
• With its front located selectable switch features, the DSP-10-LV is one of the most easy to use detectors on the market today
• Also available for other supply voltages: Model DSP-10-117 for 110 - 125VAC and Model DSP-10-230 for 230 VAC installations.
• It's the only vehicle / parking detector you will ever need!
• This device is also known as an inductive loop sensor or inductive loop detector.

Features:

• Easy to use controls
• This is a dual-voltage model. It will work with a supply voltage of either 24VAC OR 10-30 VDC
• Four  selectable operating frequencies. The actual frequency is dependent on the loop circuit attached to the detector.
• Failsafe or failsecure options
• Increased sensitivity with 10 selectable sensitivities. There is a sensitivity boost (switch 7) that allows for automatic sensitivity boost during detection for high-bed vehicles and trailers.
• Works on any in-ground inductive loop from 20 to 1500 µH
• Second relay output mode selectable
• Loop failure indicator for both open or shorted loops
• Permanent presence switch is available and selectable. Standard is 15 minutes; with switch 7 turned on, extended presence is 19 hours.
• Compact size - Industry standard 11 pin connector in a small plastic case

Guide to Making Loops: click here
