Supply Voltage: 10.5 - 30 VAC or VDC

Overview:

• Many vehicle detectors are designed to be plugged into a rack including some of the more popular Diablo Controls models. In those installations where a large rack is not available, Diablo Controls has designed a mini rack.

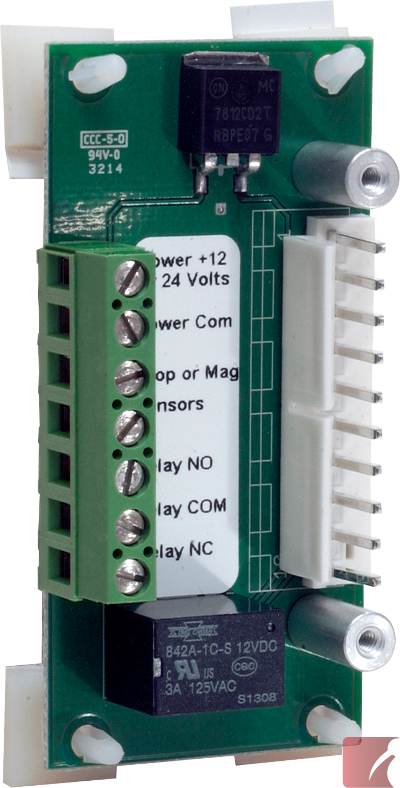

• The RK-1R is designed to accept a plug-in vehicle detector on one side and accept the appropriate wires via a terminal block on the other side.
• The entire mini rack is supported by four adhesive standoffs that attach anywhere inside the control cabinet.
• The rack is designed for detectors that have a solid state output, but need a single relay output.
• Use with Diablo Controls Detectors: DSP-13, DSP-40, DSP-55 and AVI-40

Features:

• Simplifies wiring
• Works with a wide supply voltage range of 10.5-30 VAC or VDC
• Single relay SPDT (form C) output. A common, Normally Open, and Normally Closed.
• Relay Output Rated at 3 amps @ 125 VAC
• Includes four self-adhesive mounts
• Compact size - Easy to install
