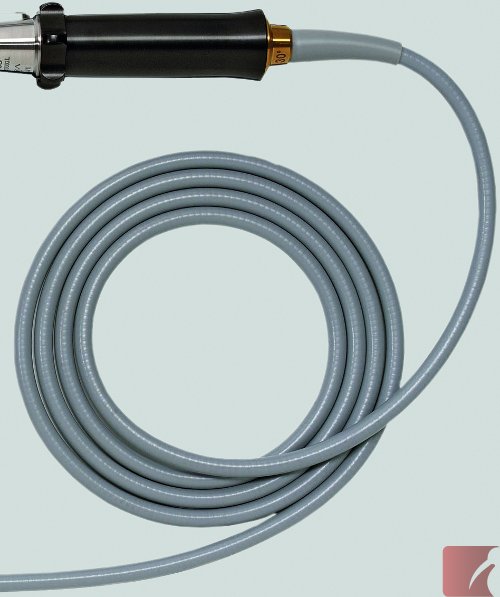

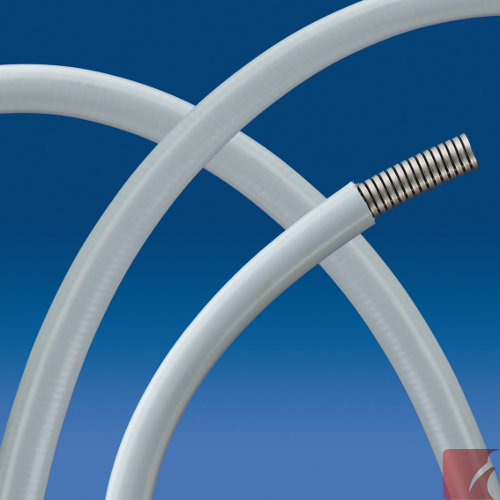

PS-AL 4.0 x 6.5 mm OD OPTOflex® silicone jacketed aluminum Fiber Optic Bundle Conduit
0133.700.004

Description

4.0 x 6.5 mm OD OPTOflex® special, highly flexible protective metal conduit for sensor and fiber optic technologies

IP 68

-60ºC to +260ºC

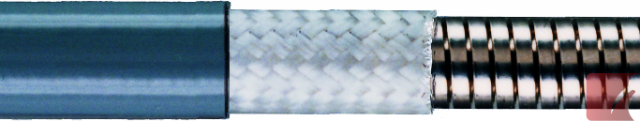

Material:

  • wound flat aluminum wire helix construction
  • fiber glass braiding
  • silicone rubber caoutchouc jacket sheathing
  • Grey standard colour. Special colours on request minimum of 500 metres (1640 ft)

Properties:

  • extra flexible
  • very light weight
  • high compression strength
  • stretch resistant
  • air and liquid-tight
  • widely resistant to solvents and chemicals
  • free of halogen and cadmium
  • wide application temperature range
  • monocoil silicone extrusion

Applications:

Excellent for fiber optics cables, optoelectronics, medical lighting, medical scoping, machine lighting, beam waveguide, measuring and sensor technologies.

Specifications

Conduit Profile:
Smooth
Conduit Type:
Regular
Color:
Grey
Weight:
0.035 kg
Package quantity:
100 metres

Dimensions:
Conduit OD:
6.5 mm
Conduit ID:
4.0 mm
Static Bend Radius:
11 mm
Dynamic Bend Radius:
11 mm
