OPTOflex® PS-AL Fiber Optic Bundle Conduit
0133.700.008
Description
OD 11.6 mm OPTOflex® special protective metal conduit for sensor and fiber optic technologies
IP 68
-60ºC to +260ºC

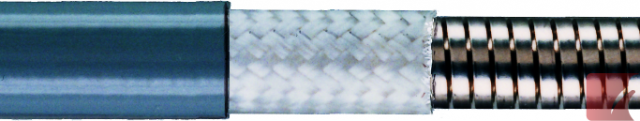

Material:
- wound flat aluminum wire helix construction
- fiber glass braiding
- silicone rubber caoutchouc jacket sheathing
- Grey standard colour. Special colours on request minimum of 500 metres (1640 ft)
Properties:
- high compression strength
- stretch resistant
- air and liquid-tight
- very light weight
- widely resistant to solvents and chemicals
- free of halogen and cadmium
- wide application temperature range
- monocoil silicone extrusion
Applications:
Excellent for fiber optics cables, optoelectronics, medical lighting, medical scoping, machine lighting, beam waveguide, measuring and sensor technologies.
Specifications
Conduit Profile:
Smooth
Conduit Type:
Regular
Color:
Grey
Weight:
0.191 kg
Package quantity:
50 metres
Dimensions:
Conduit OD:
11.6 mm
Conduit ID:
8.0 mm
Static Bend Radius:
25.0 mm
Dynamic Bend Radius:
25.0 mm
Alternate SKU Numbers
0133-700-008 | 0133700008 | 0133 700 008 | 0133_700_008 | 0133/700/008 | 0133,700,008 | 0133+700+008
