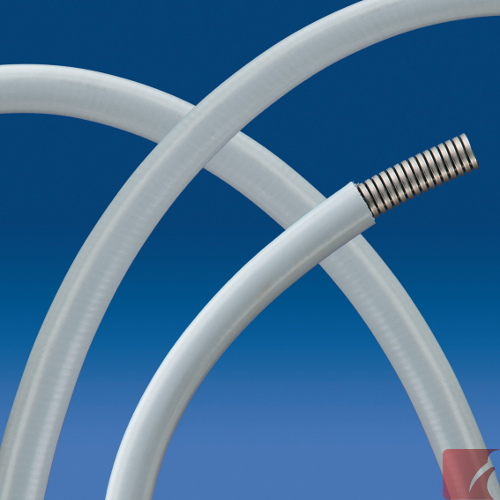

OPTOflex® PS-AL Fiber Optic Bundle Conduit
0133.700.011
Description
OD 15.6 mm OPTOflex® special protective metal conduit for sensor and fiber optic technologies
IP 68
-60ºC to +260ºC

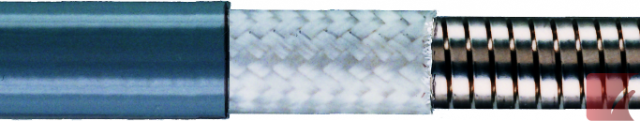

Material:
- wound flat aluminum wire helix construction
- fiber glass braiding
- silicone rubber caoutchouc jacket sheathing
- Grey standard colour. Special colours on request minimum of 500 metres (1640 ft)
Properties:
- high compression strength
- stretch resistant
- air and liquid-tight
- very light weight
- widely resistant to solvents and chemicals
- free of halogen and cadmium
- wide application temperature range
- monocoil silicone extrusion
Applications:

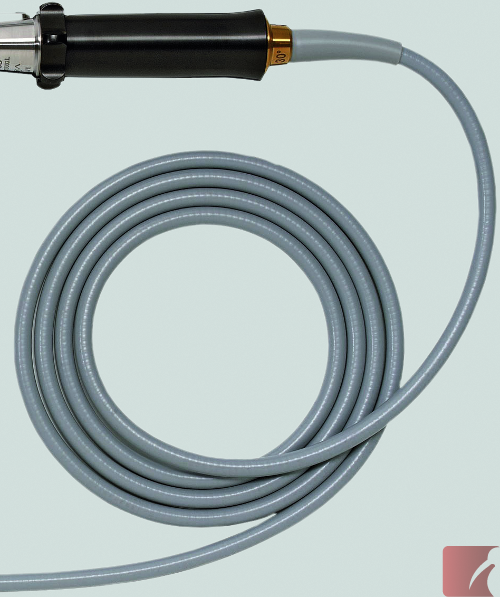

Excellent for fiber optics cables, optoelectronics, medical lighting, medical scoping, machine lighting, beam waveguide, measuring and sensor technologies.
Specifications
Conduit Profile:
Smooth
Conduit Type:
Regular
Color:
Grey
Weight:
0.324 kg
Package quantity:
25 metres
Dimensions:
Conduit OD:
15.6 mm
Conduit ID:
11.4 mm
Static Bend Radius:
40.0 mm
Dynamic Bend Radius:
40.0 mm
