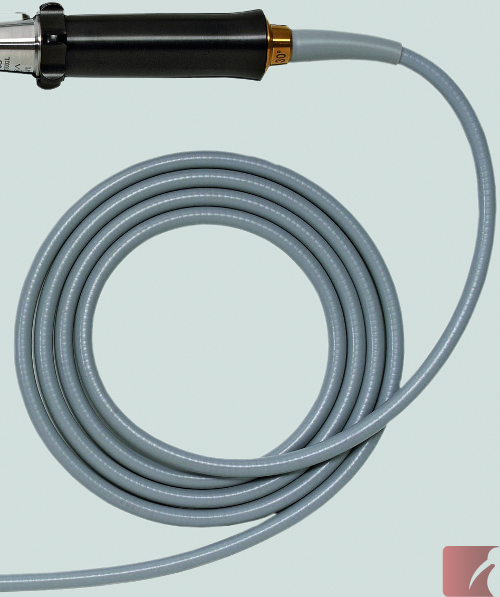

OPTOflex® PS-VA Fiber Optic Bundle Conduit
0133.900.011

Description


OD 15.6 mm OPTOflex® special protective metal conduit for sensor and fiber optic technologies

IP 68

-60ºC to +260ºC

Material:

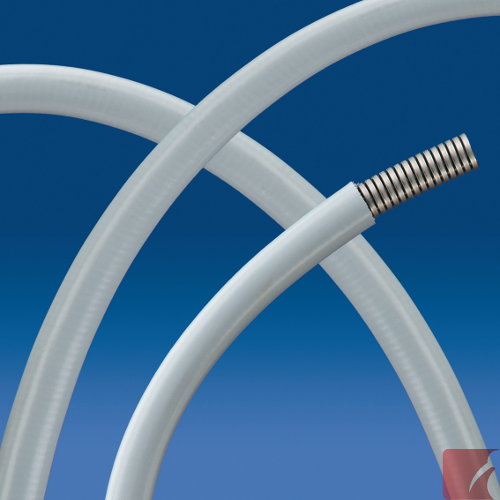

  • wound flat stainless steel wire helix construction
  • stainless steel V2A
  • fiber glass braiding
  • silicone rubber caoutchouc jacket sheathing
  • Grey standard colour. Special colours on request minimum of 500 metres (1640 ft)

Properties:

  • high compression strength
  • stretch resistant
  • air and liquid-tight
  • widely resistant to solvents and chemicals
  • free of halogen and cadmium
  • wide application temperature range
  • monocoil silicone extrusion

Applications:

Excellent for fiber optics cables, optoelectronics, medical lighting, medical scoping, machine lighting, beam waveguide, measuring and sensor technologies.

Specifications

Conduit Profile:
Smooth
Conduit Type:
Regular
Color:
Grey
Weight:
0.324 kg
Package quantity:
25 metres

Dimensions:
Conduit OD:
15.6 mm
Conduit ID:
11.4 mm
Static Bend Radius:
75.0 mm
Dynamic Bend Radius:
135 mm

Datasheet
