ROHRflex® PA6-S Grey Corrugated Conduit
0232.201.006
Description

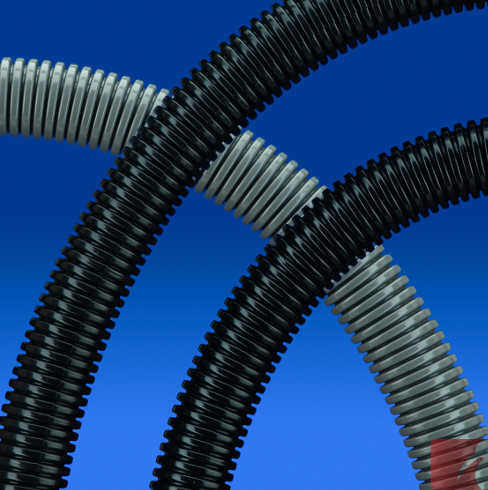

OD 10.0 mm ROHRflex® - PA 6 Grey Polyamide all plastic standard-walled, fine profile tubing. Corrugated internally & externally
HB [UL94]
-50ºC to +120ºC ... short term to +150ºC
Properties:
- air and liquid-tight
- oil resistant against up to + 80ºC
- benzene resistant
- widely resistant to acids, solvents and cutting fluids
- free of silicone, cadmium, halogen
- flame retardant
- black version conduits are UV resistant and stabilized
Applications:
- Excellent for general machine, automation and plant wiring
- Use with the broad range of FLEXAquick® fittings and accessories
Specifications
Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Grey
Weight:
0.02 kg
Package quantity:
50 metres
Dimensions:
Conduit OD:
10.0 mm
Conduit ID:
6.5 mm
Static Bend Radius:
13 mm
Dynamic Bend Radius:
35 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05

E162 & 662
SMP800C



NFF 16-
101/102 I3

Alternate SKU Numbers
2-969791-1 | 0232-201-006 | 0232201006 | 0232 201 006 | 0232_201_006 | 0232/201/006 | 0232,201,006 | 0232+201+006
