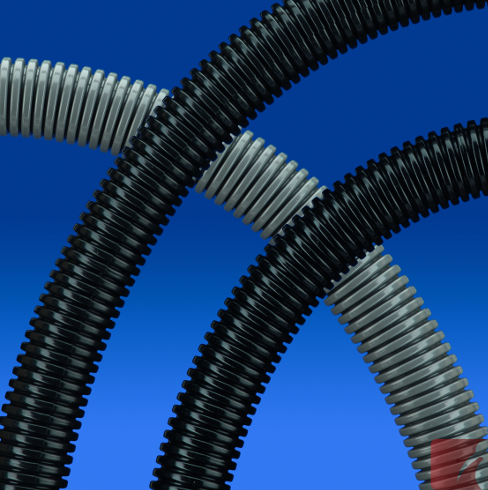

ROHRflex® PA6-S Grey Corrugated Conduit
0232.201.048

Description


OD 54.5 mm ROHRflex® - PA 6 Grey Polyamide all plastic standard-walled, fine profile tubing. Corrugated internally & externally

HB [UL94]

-50ºC to +120ºC ... short term to +150ºC

Properties:

  • air and liquid-tight
  • oil resistant against up to + 80ºC
  • benzene resistant
  • widely resistant to acids, solvents and cutting fluids
  • free of silicone, cadmium, halogen
  • flame retardant
  • black version conduits are UV resistant and stabilized

Applications:

  • Excellent for general machine, automation and plant wiring
  • Use with the broad range of FLEXAquick® fittings and accessories

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Grey
Weight:
0.22 kg
Package quantity:
25 metres

Dimensions:
Conduit OD:
54.5 mm
Conduit ID:
48.0
Static Bend Radius:
100 mm
Dynamic Bend Radius:
190 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
E162 & 662
SMP800C
NFF 16-
101/102 I3

Alternate SKU Numbers

2-969791-8 | 0232-201-048 | 0232201048 | 0232 201 048 | 0232_201_048 | 0232/201/048 | 0232,201,048 | 0232+201+048
