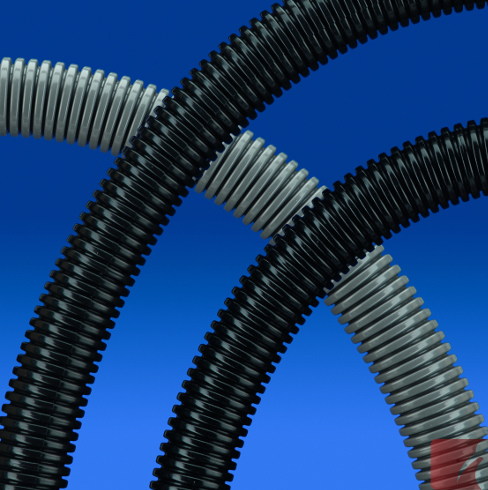

ROHRflex® PA6 Grey Corrugated Conduit
0233.201.029
Description
OD 34.5 mm ROHRflex® - PA 6 Grey Polyamide all plastic standard-walled, fine profile tubing. Corrugated internally & externally
VO [UL94]
-40ºC to +115ºC ... short term to +150ºC
Properties:
- air and liquid-tight
- oil resistant against up to + 80ºC
- benzene resistant
- widely resistant to acids, solvents and cutting fluids
- free of silicone, cadmium, halogen
- self-extinguishing and flame retardant
- black version conduits are UV resistant and stabilized
Applications:
- Excellent for railway, shipbuilding and general machine / automation wiring
- Special railway approval EN 45545-2 (HL 3)
- Exceeds ASTM E 162 and E 662 standards for mass transit vehicles
Use with all FLEXAquick® fittings and connectors
Specifications
Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Grey
Weight:
0.136 kg
Package quantity:
50 metres
Dimensions:
Conduit OD:
34.5 mm
Conduit ID:
29.0 mm
Static Bend Radius:
65 mm
Dynamic Bend Radius:
120 mm
Certifications

CSA 22.2
# 227.3-05

E162 & 662
SMP800C



45545-2
HL3 Rated

NFF 16-
101/102 I3



Alternate SKU Numbers
969790-6 | 0233-201-029 | 0233201029 | 0233 201 029 | 0233_201_029 | 0233/201/029 | 0233,201,029 | 0233+201+029
