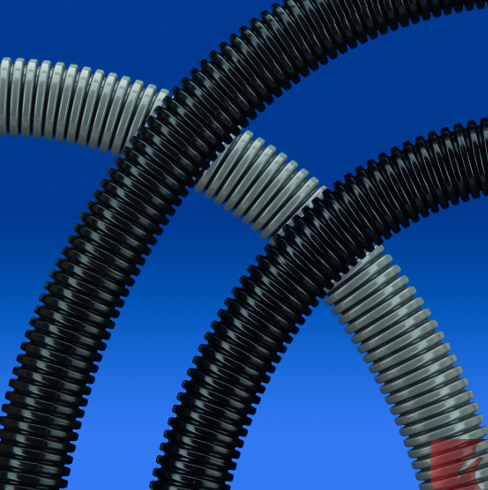

ROHRflex® PA6 Grey Corrugated Conduit
0233.201.036

Description


OD 42.5 mm ROHRflex® - PA 6 Grey Polyamide all plastic standard-walled, fine profile tubing. Corrugated internally & externally

VO [UL94]

-40ºC to +115ºC ... short term to +150ºC

Properties:

  • air and liquid-tight
  • oil resistant against up to + 80ºC
  • benzene resistant
  • widely resistant to acids, solvents and cutting fluids
  • free of silicone, cadmium, halogen
  • self-extinguishing and flame retardant
  • black version conduits are UV resistant and stabilized

Applications:

  • Excellent for railway, shipbuilding and general machine / automation wiring
  • Special railway approval EN 45545-2 (HL 3)
  • Exceeds ASTM E 162 and E 662 standards for mass transit vehicles

Use with all FLEXAquick® fittings and connectors

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Grey
Weight:
0.160 kg
Package quantity:
25 metres

Dimensions:
Conduit OD:
42.5 mm
Conduit ID:
36.0 mm
Static Bend Radius:
90 mm
Dynamic Bend Radius:
150 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
E162 & 662
SMP800C
EN 45545-2 HL3 for R22 / R 23
45545-2
HL3 Rated
NFF 16-
101/102 I3

Alternate SKU Numbers

969790-7 | 0233-201-036 | 0233201036 | 0233 201 036 | 0233_201_036 | 0233/201/036 | 0233,201,036 | 0233+201+036
