ROHRflex® PA12 Grey Corrugated Conduit
0236.201.036

Description

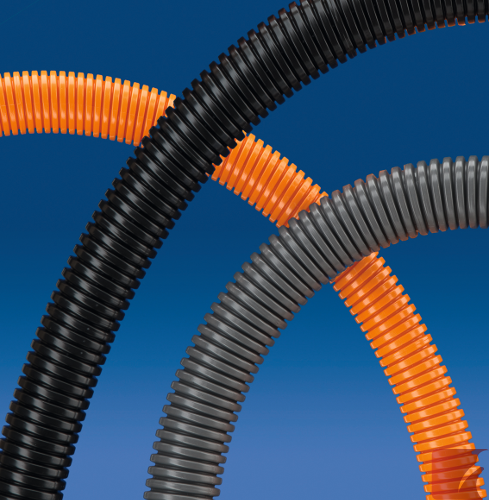

OD 42.5 mm ROHRflex® - PA 12 Grey Polyamide all plastic standard-walled, fine profile tubing. Corrugated internally & externally.

V2 [UL94]

-50ºC to +100ºC ... short term to +150ºC

Properties:

  • high alternate bending strength
  • air and liquid-tight
  • oil and benzene resistant
  • widely resistant to acids, solvents and cutting fluids
  • free of silicone, cadmium, halogen
  • self-extinguishing and flame retardant
  • black version conduits are UV resistant and stabilized

Applications:

  • excellent for railway applications, especially exterior wiring
  • excellent for robotics and high motion applications
  • shipbuilding and general machine / automation wiring

Use with all FLEXAquick® fittings and connectors

Specifications

Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Grey
Weight:
0.165 kg
Package quantity:
25 metres

Dimensions:
Conduit OD:
42.5 mm
Conduit ID:
36.0 mm
Static Bend Radius:
80 mm
Dynamic Bend Radius:
150 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
E162 & 662
SMP800C
NFF 16-
101/102 I3
