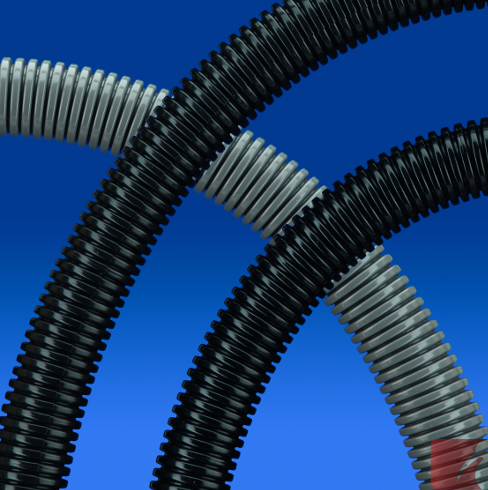

ROHRflex® PA6-L Grey Corrugated Conduit
0261.201.029
Description
OD 34.5 mm - ROHRflex® - PA 6 Grey Polyamide all plastic standard-walled, fine profile tubing. Corrugated internally & externally
HB [UL94]
-25ºC to +105ºC ... short term to +120ºC
Properties:
- air and liquid-tight
- oil resistant against up to + 80ºC
- benzene resistant
- widely resistant to acids, solvents and cutting fluids
- free of silicone, cadmium, halogen
- flame retardant
- black version conduits are UV resistant and stabilized
Applications:
- Excellent for general machine, automation and plant wiring
- Use with the broad range of FLEXAquick® fittings and accessories
Specifications
Conduit Profile:
Fine
Conduit Type:
Regular
Color:
Grey
Weight:
0.126 kg
Package quantity:
25 metres
Dimensions:
Conduit OD:
34.5 mm
Conduit ID:
29.0 mm
Static Bend Radius:
65 mm
Dynamic Bend Radius:
120 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05




Alternate SKU Numbers
0261-201-029 | 0261201029 | 0261 201 029 | 0261_201_029 | 0261/201/029 | 0261,201,029 | 0261+201+029
