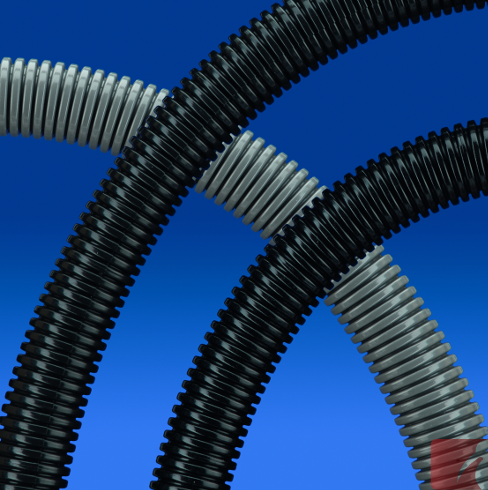

ROHRflex® PA6-L Grey Coarse Profile Corrugated Conduit
0261.231.016

Description


OD 21.2 mm - ROHRflex® - PA 6 Grey Polyamide all plastic standard-walled, coarse profile tubing. Corrugated internally & externally

HB [UL94]

-25ºC to +105ºC ... short term to +120ºC

Properties:

  • air and liquid-tight
  • oil resistant against up to + 80ºC
  • benzene resistant
  • widely resistant to acids, solvents and cutting fluids
  • free of silicone, cadmium, halogen
  • flame retardant
  • black version conduits are UV resistant and stabilized

Applications:

  • Excellent for general machine, automation and plant wiring
  • Use with the broad range of FLEXAquick® fittings and accessories

Specifications

Conduit Profile:
Coarse
Conduit Type:
Regular
Color:
Grey
Weight:
0.056 kg
Package quantity:
50 metres

Dimensions:
Conduit OD:
21.2 mm
Conduit ID:
15.5 mm
Static Bend Radius:
45 mm
Dynamic Bend Radius:
75 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
