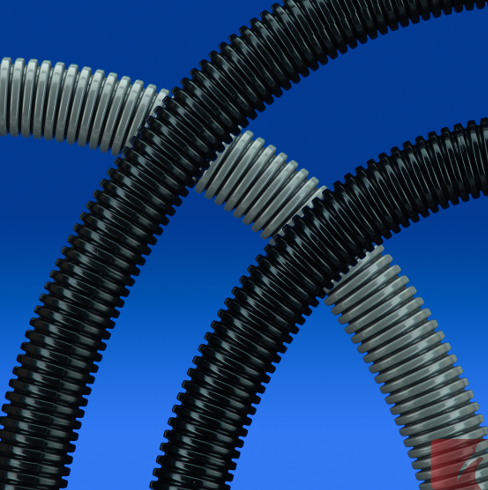

ROHRflex® PA6-L Grey Coarse Profile Corrugated Conduit
0261.231.036

Description


OD 42.5 mm - ROHRflex® - PA 6 Grey Polyamide all plastic standard-walled, coarse profile tubing. Corrugated internally & externally

HB [UL94]

-25ºC to +105ºC ... short term to +120ºC

Properties:

  • air and liquid-tight
  • oil resistant against up to + 80ºC
  • benzene resistant
  • widely resistant to acids, solvents and cutting fluids
  • free of silicone, cadmium, halogen
  • flame retardant
  • black version conduits are UV resistant and stabilized

Applications:

  • Excellent for general machine, automation and plant wiring
  • Use with the broad range of FLEXAquick® fittings and accessories

Specifications

Conduit Profile:
Coarse
Conduit Type:
Regular
Color:
Grey
Weight:
0.165 kg
Package quantity:
25 metres

Dimensions:
Conduit OD:
42.5 mm
Conduit ID:
35.5 mm
Static Bend Radius:
90 mm
Dynamic Bend Radius:
150 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05

Alternate SKU Numbers

0261-231-036 | 0261231036 | 0261 231 036 | 0261_231_036 | 0261/231/036 | 0261,231,036 | 0261+231+036
