ROHRflex® Multi-PA6 Grey Large Diameter Corrugated Conduit
0206.201.095
Description
ID 95 mm ROHRflex® Multi - PA 6 Grey Polyamide all plastic thick-walled tubing. Corrugated internally & externally
HB [UL94]
-40ºC to +115ºC ... short term to +150ºC
Properties:
- air and liquid-tight
- non-crush wall properties
- oil resistant up to + 80ºC
- benzene resistant
- widely resistant to acids, solvents and cutting fluids
- free of silicone, cadmium, halogen
- flame retardant
Applications:

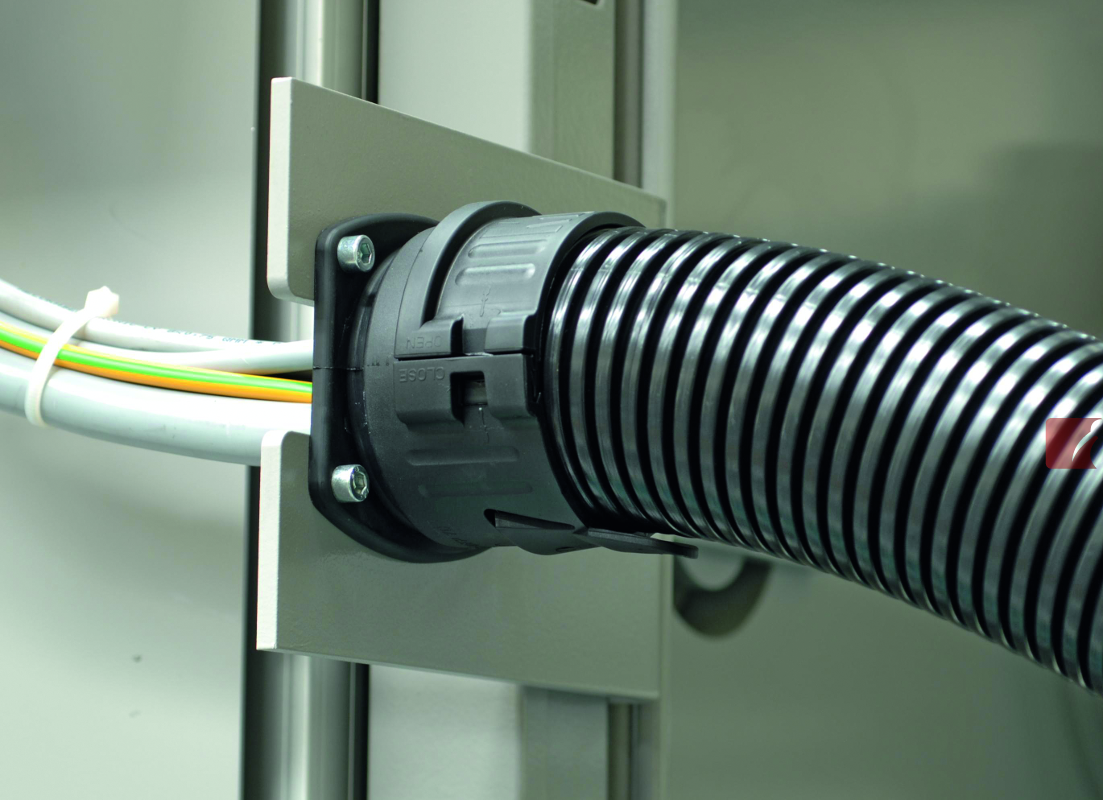

- Excellent for large quantity wire trunking and general machine / automation wiring
- Suitable for low to medium reverse bending cycles in robotics and motion applications
Specifications
Conduit Profile:
Coarse
Conduit Type:
Regular
Color:
Grey
Weight:
0.95 kg
Package quantity:
10 metres
Dimensions:
Conduit OD:
106.0 mm
Conduit ID:
91.0 mm
Static Bend Radius:
225 mm
Dynamic Bend Radius:
450 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05



Alternate SKU Numbers
2-796361-2 | 0206-201-095 | 0206201095 | 0206 201 095 | 0206_201_095 | 0206/201/095 | 0206,201,095 | 0206+201+095
