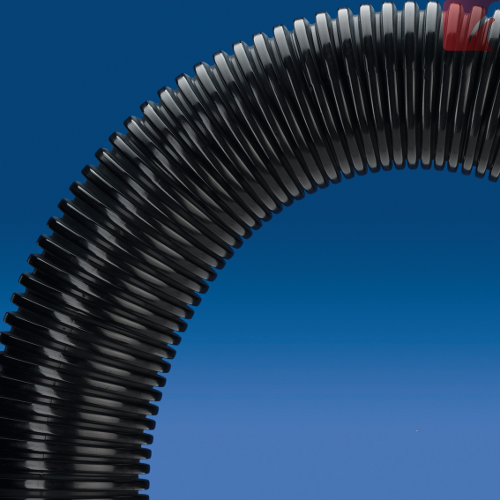

ROHRflex® Multi-PA6 Large Diameter Corrugated Conduit
0206.202.056
Description
ID 56 mm ROHRflex® Multi - PA 6 Polyamide all plastic thick-walled tubing. Corrugated internally & externally
HB [UL94]
-40ºC to +115ºC ... short term to +150ºC
Properties:
- air and liquid-tight
- non-crush wall properties
- oil resistant up to + 80ºC
- benzene resistant
- widely resistant to acids, solvents and cutting fluids
- free of silicone, cadmium, halogen
- flame retardant
Applications:

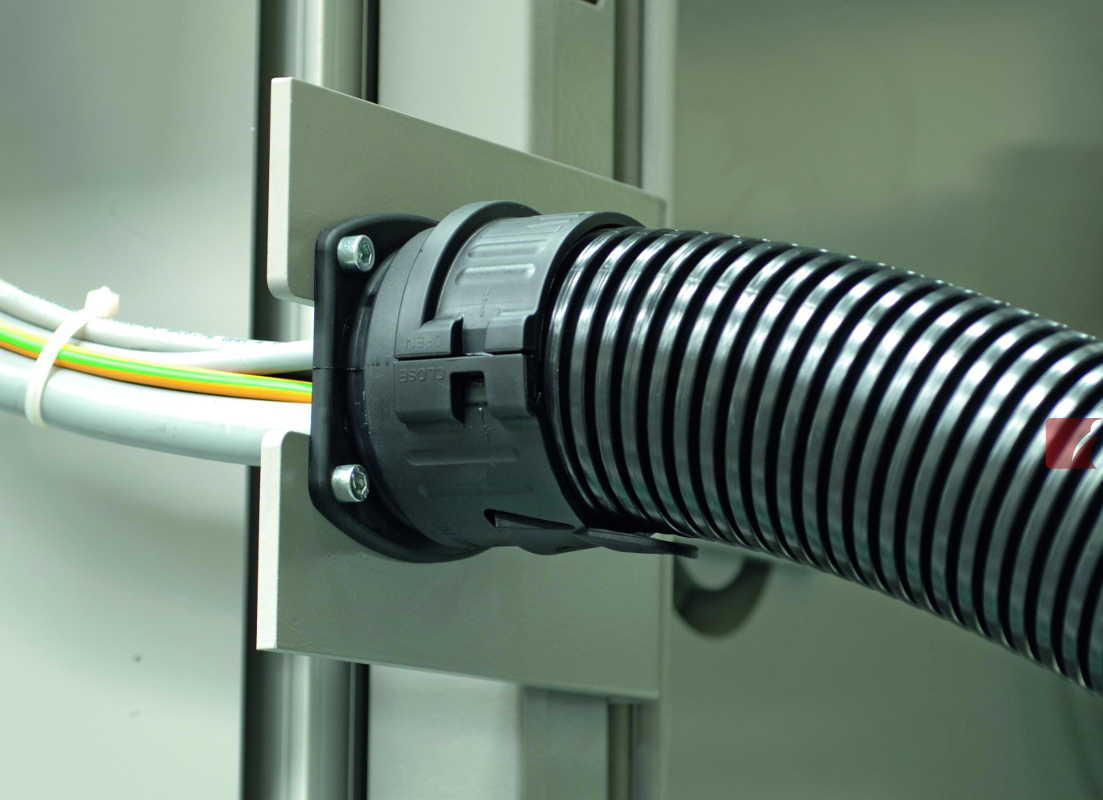

- Excellent for large quantity wire trunking and general machine / automation wiring
- Suitable for low to medium reverse bending cycles in robotics and motion applications
Specifications
Conduit Profile:
Coarse
Conduit Type:
Regular
Color:
Black
Weight:
0.46 kg
Package quantity:
10 metres
Dimensions:
Conduit OD:
67.2 mm
Conduit ID:
56.3 mm
Static Bend Radius:
130 mm
Dynamic Bend Radius:
270 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05
