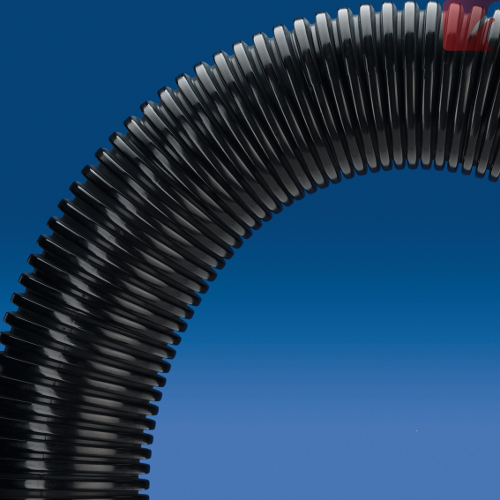

ROHRflex® Multi-PA6 Large Diameter Corrugated Conduit
0206.202.095

Description


ID 95 mm ROHRflex® Multi - PA 6 Polyamide all plastic thick-walled tubing. Corrugated internally & externally

HB [UL94]

-40ºC to +115ºC ... short term to +150ºC

Properties:

  • air and liquid-tight
  • non-crush wall properties
  • oil resistant up to + 80ºC
  • benzene resistant
  • widely resistant to acids, solvents and cutting fluids
  • free of silicone, cadmium, halogen
  • flame retardant

Applications:

  • Excellent for large quantity wire trunking and general machine / automation wiring
  • Suitable for low to medium reverse bending cycles in robotics and motion applications

Specifications

Conduit Profile:
Coarse
Conduit Type:
Regular
Color:
Black
Weight:
0.95 kg
Package quantity:
10 metres

Dimensions:
Conduit OD:
106.0 mm
Conduit ID:
91.0 mm
Static Bend Radius:
225 mm
Dynamic Bend Radius:
450 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05

Alternate SKU Numbers

796361-2 | 0206-202-095 | 0206202095 | 0206 202 095 | 0206_202_095 | 0206/202/095 | 0206,202,095 | 0206+202+095
