ROHRflex® Grey Multi-GFP
5032.006.056

Description

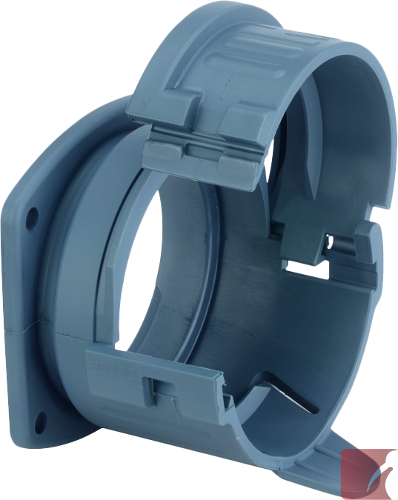

56 mm ROHRflex® Multi-GFP Grey straight flange connector, for 56 mm ID conduit, made of polyamide

IP54 is standard - IP65, IP66, IP67, IP69k sealing level available with separate specific gasket kit

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • flame resistant
  • self-extinguishing, in case of fire
  • heavy duty & impact resistant

Excellent for railway and robotics applications.

Use with ROHRflex® Multi conduits

Specifications

Connector Thread:
flange
Sealing Level:
IP54-69k
Colour:
Grey
Weight:
0.108 kg
Package quantity:
1

Dimensions:
φ I:
96.50
φ B:
80.50
C:
60.00
D:
66.00
Conduit OD:
67.2

Datasheet

Certifications

Alternate SKU Numbers

5032-006-056 | 5032006056 | 5032 006 056 | 5032_006_056 | 5032/006/056 | 5032,006,056 | 5032+006+056
