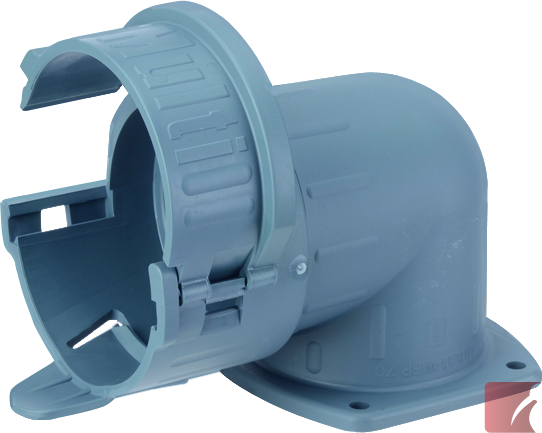

ROHRflex® Grey Multi-WFP Elbow
5032.007.070

Description


70 mm ROHRflex® Multi-WFP Grey 90º elbow flange connector, for 70 mm ID conduit, made of polyamide

IP54 is standard - IP65, IP66, IP67, IP69k sealing level available with separate specific gasket kit

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • flame resistant
  • self-extinguishing, in case of fire
  • heavy duty & impact resistant

Excellent for railway and robotics applications.

Use with ROHRflex® Multi conduits

Specifications

Connector Thread:
flange
Sealing Level:
IP54-69k
Colour:
Grey
Weight:
0.171 kg
Package quantity:
1

Dimensions:
φ I:
94.00
φ B:
96.00
C:
60.50
D:
80.50
Conduit OD:
79.2
