65 - 600 mm range Microsonic Mic-35 Ultrasonic Distance Sensor, Rugged, 1 x PNP NO/NC output, axial sensing
mic-35/D/M

Description

65 - 600 mm Range Rugged Mic-35 Microsonic Ultrasonic Distance Proximity Sensor with 1 x PNP NO/NC output.

The mic-35 is harsh application ready. It features a robust all-metal sensor body with integrated metal M12 connector construction.

No signal LEDs or external pushbuttons makes them especially suitable for extreme ambient conditions.

Highlights:

  • Optimum Target Distance: 350 mm
  • Measuring Range: 65 to 600 mm
  • Output: 1 x PNP NO (normally open) /NC (normally closed), all programmable

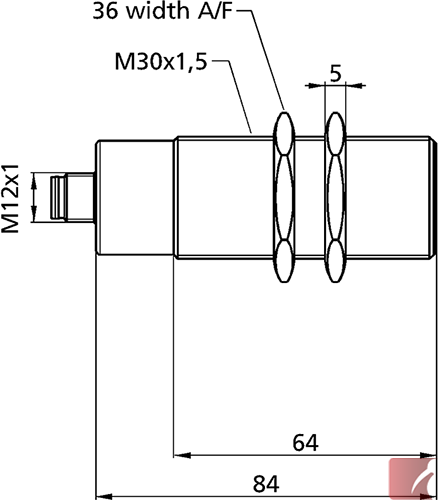

  • M30 cylindrical metal housing, IP67
  • Axial sensing face element

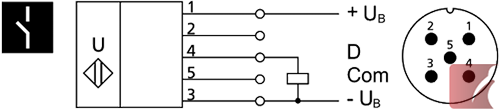

  • Connection: Metal M12 male 5-pin connector

Operating modes:

  • Proximity switch or reflective mode, reflective barrier mode & window mode
  • Teach-in ready via Com input on Pin 5 using the separately available
  • handheld LCA-2 LinkControl-Adapter or full LCA-2 Kit (Koffer)
  • Sensors may be grouped: "No Crosstalk".
  • Fully Synchronized and multiplexed via pin 5. Up to 10 sensors in tight spacing.

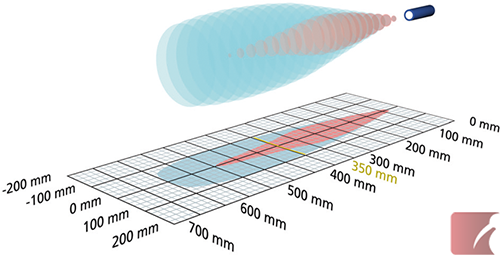

Ultrasonic Details:

  • Optimum sensing distance: 350 mm
  • Blind zone: 65 mm
  • Maximum range: 600 mm
  • Resolution: 0.18 mm
  • Reproducibility: +/- 0.15%
  • Accuracy: +/- 1%, temperature drift compensated
  • Transducer frequency: 400 kHz

Output & Electrical Details:

  • Output current: 200 mA maximum
  • Switching hysteresis: 5 mm
  • Switching frequency: 12 Hz
  • Response time: 64 ms
  • Supply voltage: 9 to 30 VDC
  • Short circuit and polarity protected

External Details:

  • Operating temperature range: -25ºC to +70ºC
  • Housing protection: IP 67 sealing level
  • Housing material: nickel-plated brass sleeve; transducer face, polyurethane foam & epoxy resin
  • Connection: Metal M12 male 5 pin connector

Specifications

Colour:
Silver
Weight:
.200
Package quantity:
1

Sensor Details:
Sensor Type:
Ultrasonic Sensors
Sensor Connection:
M12 - 5 Pole
Sensor Housing Size:
M30 x 1.5 mm
Sensor Output:
PNP / NO+NC
