65 - 600 mm Range Rugged Mic-35 Microsonic Ultrasonic Distance Proximity Sensor with 1 x Analog output, 4-20mA or 0-10V.

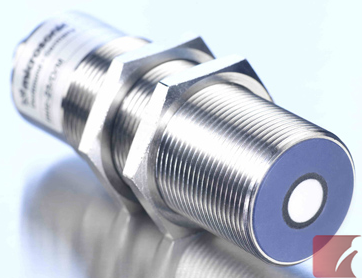

The mic-35 is harsh application ready. It features a robust all-metal sensor body with integrated metal M12 connector construction.

No signal LEDs or external pushbuttons makes them especially suitable for extreme ambient conditions.

Highlights:

• Optimum Target Distance: 350 mm
• Measuring Range: 65 to 600 mm
• Output: 1 x Analog, either 4-20 mA or 0-10V, short circuit proof, switchable for rising and falling signals

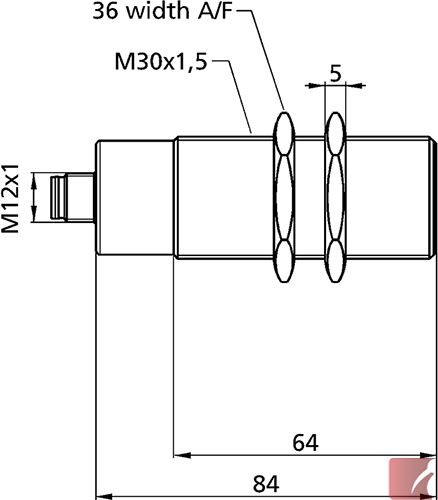

• M30 cylindrical metal housing, IP67
• Axial sensing face element

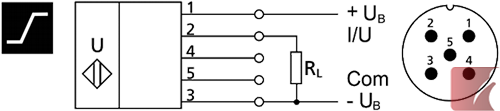

• Connection: Metal M12 male 5-pin connector

Operating modes:

• Proximity mode for analog distance measurements
• Teach-in ready via Com input on Pin 5 using the separately available
• handheld LCA-2 LinkControl-Adapter or full LCA-2 Kit (Koffer)
• Sensors may be grouped: "No Crosstalk".
• Fully Synchronized and multiplexed via pin 5. Up to 10 sensors in tight spacing.

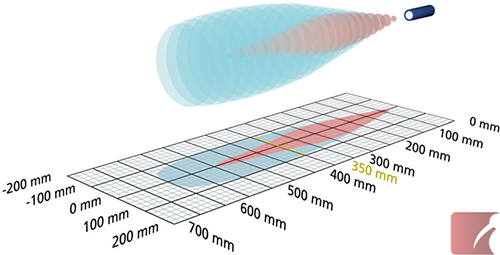

Ultrasonic Details:

• Optimum sensing distance: 350 mm
• Blind zone: 65 mm
• Maximum range: 600 mm
• Resolution: 0.18 mm
• Reproducibility: +/- 0.15%
• Accuracy: +/- 1%, temperature drift compensated
• Transducer frequency: 400 kHz

Output & Electrical Details:

• Analog Output: either 4-20 mA or 0-10VDC, @ supply voltage (U_B ≥ 15 V)
• Switching hysteresis: N/A
• Switching frequency: N/A
• Response time: 64 ms
• Supply voltage: 9 to 30 VDC
• Short circuit and polarity protected

External Details:

• Operating temperature range: -25ºC to +70ºC
• Housing protection: IP 67 sealing level
• Housing material: nickel-plated brass sleeve; transducer face, polyurethane foam & epoxy resin
• Connection: Metal M12 male 5 pin connector
