RQW-F Flange Connector
5020.077.229

Description

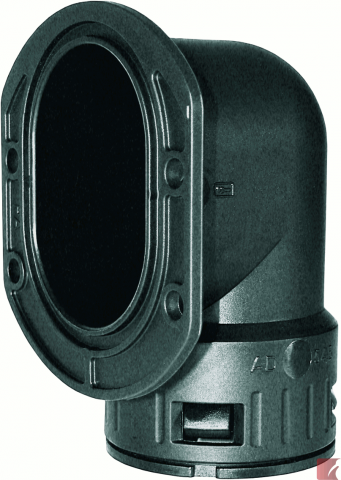

FLEXAquick® 90° flange elbow connector, for 34.5 mm OD conduit, made of polyamide

IP 68 sealing level. Includes a flange sealing ring made of TPE rubber.

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • flame resistant
  • self-extinguishing, in case of fire
  • heavy duty & impact resistant

Excellent for mounting to control panels and applications in tight areas.

Innovative feature:

  • Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits.

Specifications

Connector Thread:
flange
Sealing Level:
IP68
Colour:
Black
Weight:
0.057 kg
Package quantity:
10

Dimensions:
φ I:
33.00
φ B:
67.00
C:
77.00
D:
50.00
Conduit OD:
34.5 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
