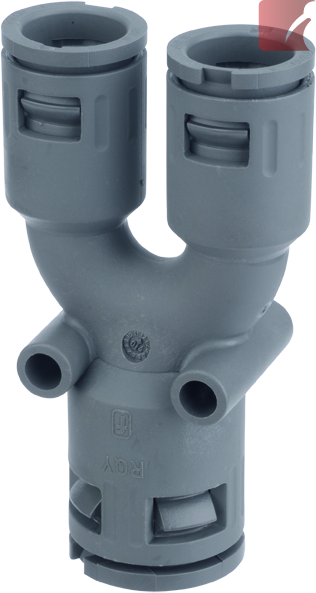

RQY-PA Grey Polyamide "Y" Fitting
5020.032.006
Description
FLEXAquick® Grey "Y" fitting, 1 x21.2 to 2 x 15.8 mm OD conduit, made of polyamide
1 x 21.2 mm to 2 x 15.8 mm "Y" distributor
IP 68 / IP 69K sealing level
-40ºC to +115ºC
Material:
- made of PA 6 polyamide plastic
- 1 x 4.0 mm mounting hole
Properties:
- resistant oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- Quick assembly
Innovative feature:
- Quick "on" assembly, Quick "off" disassembly via a built-in release clip
Use with ROHRflex® corrugated conduits
Specifications
Color:
Grey
Weight:
0.034 kg
Package Quantity:
10
Datasheet
Certifications

CSA 22.2
# 227.3-05



45545-2
HL2 Rated

NFF 16-
101/102 I3

Alternate SKU Numbers
5020-032-006 | 5020032006 | 5020 032 006 | 5020_032_006 | 5020/032/006 | 5020,032,006 | 5020+032+006
