LIF-M M12 x 1.5 mm Straight Metal Body Fitting for SPR AS / VA / PU-F / PVC & FLEXAgraff® AS / VA / PU-F conduits
5801.310.012

Description

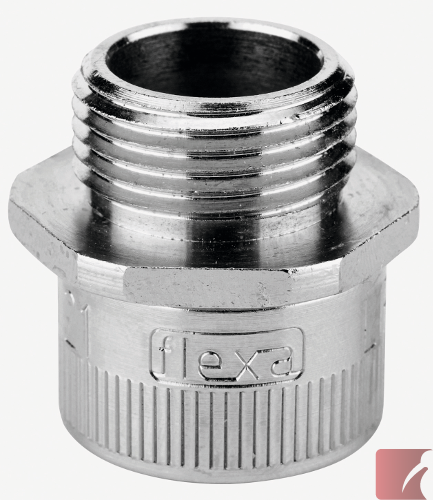

M12 x 1.5 mm FLEXA straight connector for 10.0 mm OD conduit, outer thread, made of nickel plated brass

Compact conduit fitting design for simple and easy installation. Once mounted, the fitting is fixed and does not rotate.

IP 40 sealing level

-40ºC to +250ºC

Use with the following conduits:

  • SPR, SPR-AS, SPR-VA
  • SPR-PVC, SPR-PA, SPR-PU-AS, SPR-PU-F
  • FLEXAgraff®-AS, FLEXAgraff®-VA, FLEXAgraff®-PU-F

Available also in the small 10 piece pack: Check here for LIF-M small pack part # 5801.810.012

Construction:

  • Body: nickel-plated brass
  • Cover sleeve: nickel-plated brass

Properties:

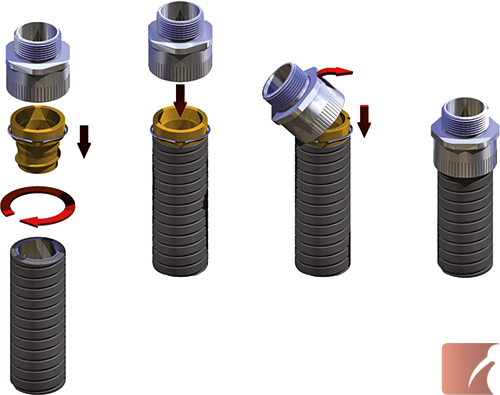

  • the one-piece "screw-in style" connector body, twists easily into the conduit end
  • the ferrule and fitting body are one piece; the connector cannot rotate after it is mounted
  • covers the end of the cut conduit completely
  • good vibration and tension tolerance



Specifications

Connector Thread:
M12 x 1.5 mm
Sealing Level:
IP 40
Colour:
Silver
Weight:
0.0155 kg
Package quantity:
50

Dimensions:
φ I:
5.90
φ B:
16.00
C:
10.00
D:
26.00
Conduit OD:
10.0 mm

Certifications

Alternate SKU Numbers

5801-310-012 | 5801310012 | 5801 310 012 | 5801_310_012 | 5801/310/012 | 5801,310,012 | 5801+310+012
