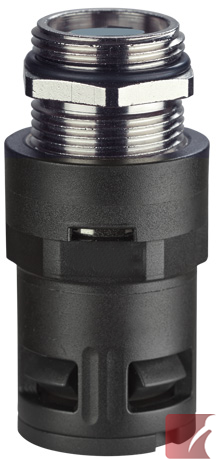

RQGKZE-M M25 x 1.5 mm Metric Metal Thread with EMC Bonding Strain Relief FLEXAquick Connector for 28.5 mm OD Conduit
5111.028.225

Description

M25 x 1.5 mm FLEXAquick® metal thread straight connector with built-in EMC bonding strain-relief clamp for 28.5 mm OD conduit

Conduit fitting shields EMI by metallic braid bonding through EMC grounding and cable strain-relief system.

NO tools required! Makes doing a secure, reliable conduit fitting installation, simple, easy, and very quick.

Use with all corrugated plastic conduits of matching outside diameter (OD). Fine ("T" profile) or coarse ("G" profile) corrugations

The FLEXAquick® release clip system for easy connector Quick "on" assembly, Quick "off" disassembly

Cable clamping range: 11.0 - 16.0 mm

Need a different size?:  Browse other RQGKZE-M Metric metal threaded EMI shielding corrugated conduit fittings

IP 68 / IP 69K sealing level

-40ºC to +120ºC

Material:

  • plastic PA 6 polyamide body
  • nickel plated brass strain relief & thread
  • nickel plated brass EMC protection shielding contact
  • two piece strain relief system with sealing grommet
  • includes rubber O-ring for outer thread sealing

Properties:

  • EMC protection with shielding contact for bonding metallic braiding
  • EMC shielding and cable strain relief in one package
  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • high mechanical stress tolerance
  • impact-resistant

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
M25 x 1.5 mm
Sealing Level:
IP68
Colour:
Black
Weight:
0.0672 kg
Package quantity:
25

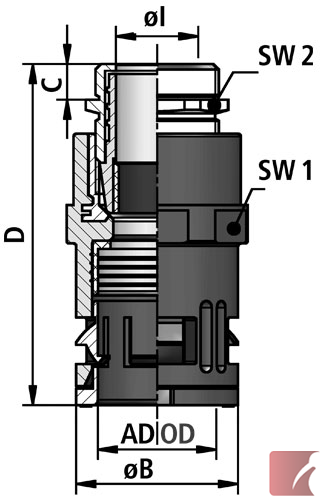

Dimensions:
φ I:
16.00
φ B:
42.80
C:
7.00
D:
71.00
Conduit OD:
28.5 mm

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
UL1696
UL 1696
#E86359
E162 & 662
SMP800C
EN 45545-2 HL3 for R22 / R 23
45545-2
HL3 Rated
NFF 16-
101/102 I3
EN 50289-1

Alternate SKU Numbers

5111-028-225 | 5111028225 | 5111 028 225 | 5111_028_225 | 5111/028/225 | 5111,028,225 | 5111+028+225
