di-soric 18 mm Ultrasonic Sensor, 1500 mm Range, IO-Link, Analog & Digital Output

Part#: US 18 M 1500 IU-B4

Description

18 mm Ultrasonic Sensor, 1500 mm Range, IO-Link, Analog & Digital Outputs

IO-Link Benefits:

Three (3) Operating modes: Ultrasonic Level Measuring Sensor, Ultrasonic Fixed Level Sensor and Ultrasonic Barrier
Operating distance 150 to 1500 mm, as a programmable parameter
Switching hysteresis 6 to 20 mm, as an adjustable parameter
Sensitivity adjustment by programmable Teach parameter
Adjustable switching frequency
Output: Analog or digital, Push-Pull/PNP/NPN and NO/NC selectable via IO-Link
Integrated temperature compensation maintains reliable, high accuracy measurements. IO-Link enabled and disabled
Future proof sensor communication; extends programmable options while monitoring device functions & parameters

Analog output: Voltage 0 to 10 V or Current 4 to 20 mA, programmable parameter

Teach modes: Ultra-simple three (3) teach modes & settings. Window mode, 2-point mode and "auto-teach" mode

Unique reflective sensing mode: The sensor is taught the background and not the objects to be detected. Only deviations from the background are then signaled (detected).

Narrow detection beam: Small blind zone, insensitive to dirt buildup.

Technical Information @ +20°C, 24VDC:

Interface: IO-Link V1.1 | COM 2 | Smart Sensor Profile
Sound Frequency: 200 kHz
Switching frequency: < 10 Hz
Load resistance, analog output: R > 10k ohms (0 - 10 V) or R < 400 ohms (4 - 20 mA)
Reproducibility: 1.5 mm
Resolution: 1.0 mm
Supply voltage: 18 - 30 VDC
Max output current: 150 mA
Short circuit & reverse polarity protected

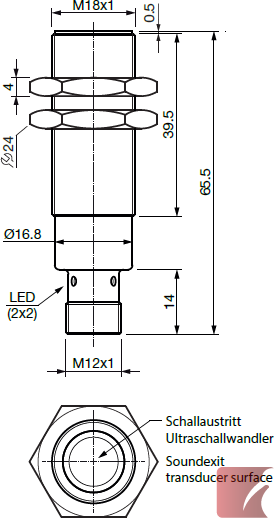

External details:

Operating temperature range of -25ºC to +70ºC

IP 67 sealing level with a sturdy nickel-plated brass casing

Epoxy resin PUR transducer surface

Bright 2 x yellow ring LED for display output and 2 x green LED for status; both at connection

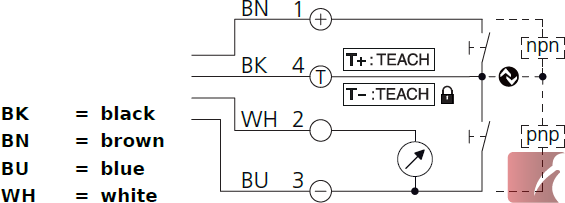

Connection - M12 (4 wire) connector

Specifications

Colour:

Silver

Weight:

0.1 kg

Package quantity:

Sensor Details:

Sensor Type:

Ultrasonic Sensors

Sensor Connection:

M12 - 4 pole

Sensor Emitted Light:

Red Light

Sensor Fork Style:

"U" (slot) shape

Sensor Fork Width:

30 mm

Sensor Housing Size:

M18 x 1 mm

Sensor Output:

IO-Link

Datasheet

disoric-us18m1500iub4-ibiselectroproducts.pdf
