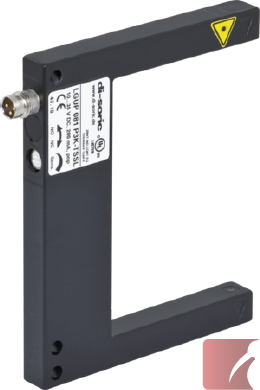

di-soric 80 mm Visible Red Laser Fork Barrier, High Power, PNP NO & NC switchable outputs
LGUP 081 P3K-TSSL

Description


di-soric 80 mm Visible Red Laser Fork Barrier, High Power, PNP NO & NC switchable outputs

Features:

Emitted Light: Red light laser, clocked

High Power for dirt penetration

High switching frequency: 3000 Hz

High Resolution with High Speed

Light/dark switching modes

Sensitivity adjustment via potentiometer

Technical Information @ +20°C, 24VDC:

  • Fork width - 80 mm

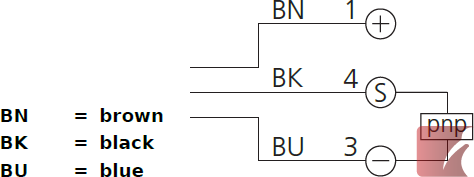

  • Output - PNP NO & NC switchable
  • Resolution - 0.2 mm (steel ball)
  • Supply voltage - 10 - 35 VDC
  • Max output current - 200 mA
  • Short circuit and polarity protected
  • Switching frequency - 3 kHz
  • Reproducibility - 0.02 mm

External details:

Operating temperature range of 0ºC to +50ºC

IP 67 sealing level with a sturdy, zinc die-cast, black powder coated metal housing

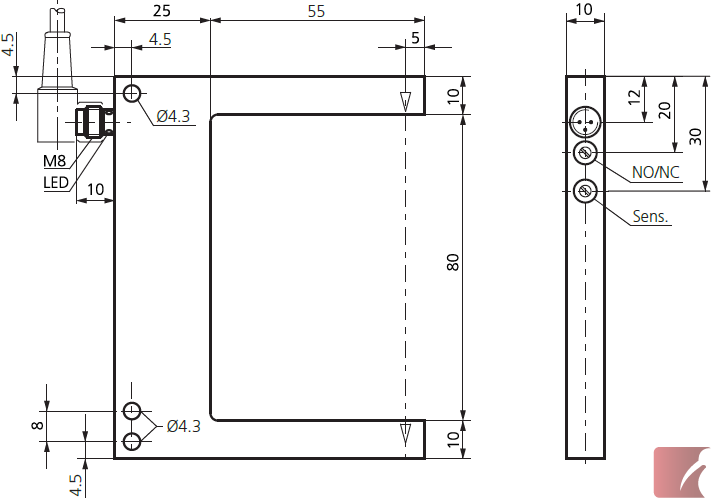

Outer dimensions - H/W/D 100 / 80 / 10 mm, branch length = 55 mm

Bright ring LED signal light at connection

Connection - M8 (3 pole) connector



Specifications

Colour:
Black
Weight:
0.1 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Fork & Slot Sensors
Sensor Connection:
M8 - 3 Pole
Sensor Emitted Light:
Visible Laser
Sensor Fork Style:
"U" (slot) shape
Sensor Fork Width:
80 mm
Sensor Output:
PNP / NO+NC

Certifications
