6 mm Ultrasonic through beam Label Sensor, IO-Link & keypad configurable, with radial M12 connector

Detects metalized, transparent and paper based labels

IO-Link Benefits:

• On / Off delay as a programmable parameter
• Diagnostics as a selectable parameter
• Remote teach with key-lock function
• Adjustable sensitivity & fine-tuning settings

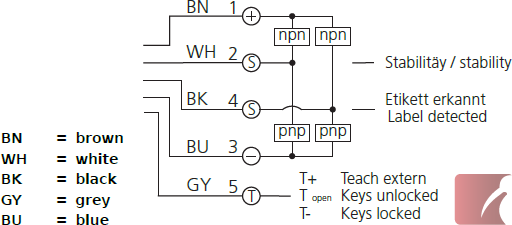

• Output: Two pairs of Push-Pull/PNP/NPN selectable via IO-Link, 100 mA and  NO/NC selectable by IO-Link or manual potentiometer

Interface: IO-Link V1.1 | COM 2 | Smart Sensor Profile

Large fork opening and fork depth: 6 mm / 70 mm

Label thickness < 5.9 mm

Maximum belt speed (based on 2 mm label & gap): 48,000 labels / minute. Specific operation is dependent on label thickness and label material & backing.

High switching frequency: 4000 Hz

Technical Information @ +20°C, 24VDC:

• Supply voltage: 18 - 30 VDC
• Max output current: 100 mA per output
• Short circuit and polarity protected
• Switching frequency: 4 kHz
• Reproducibility: +/- 0.02 mm

External details:

Operating temperature range of 0ºC to +60ºC

IP 67 sealing level with a sturdy, black anodized aluminum housing

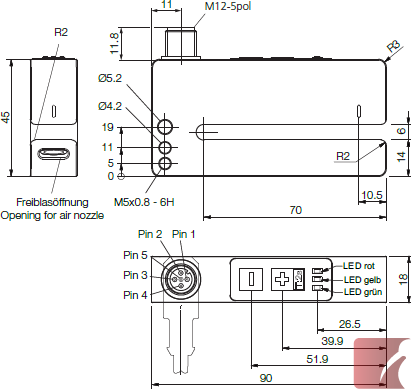

Outer dimensions - H/W/D 45 / 90 / 18 mm

Fork branch lengths = 70 mm

Bright display LED outputs: Red = warning, insufficient stability, Green = active operating mode and Yellow displays the output

Connection - Radial, M12 (5 pole) connector
