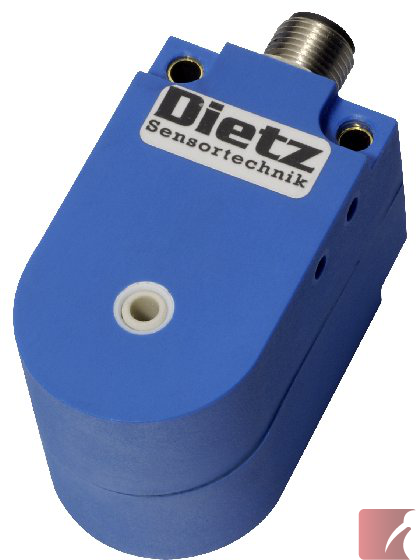

Inductive Ring Wire Break Sensor 4.0 mm diameter
IRDB 4 PSK-ST4

Description

4.0 mm Wire Break Sensor with PNP, NO output

Made in Germany by Dietz Sensortechnik.

Highlights:

Self-contained, compact sensor technology

Static operation - Ring sensors with static switching operation, detect both fast and very slow traveling metallic objects

High resolution / fast response time

Insensitive to dirt

Adjustable pulse stretching

Operating temperature range of -25ºC to +70ºC

IP 65 sealing level with a sturdy polyamide housing and ceramic inner ring

Very easy to install.

Technical Data:

  • Ring Diameter  - 4.1 mm
  • Smallest detectable wire size  -  0.18 mm of copper wire
  • Supply voltage - 10 - 35 VDC
  • Max output current - 200 mA
  • Short circuit and polarity protected
  • Internal power consumption - < 10 mA
  • Voltage insulation - 500 V
  • Response / Release time - 0.2 ms
  • Switching frequency - 10 Hz
  • Pulse stretching - adjustable up to 100 ms
  • Object speed - Max 35 m/s
  • M12 (3 wire) connector

Applications for Inductive Ring Wire Break Sensors with static switching operation:

  • Wire break detection. This sensor was specifically designed for wire break detection.

Specifications

Colour:
Blue
Weight:
0.10 kg
Package quantity:
1

Sensor Details:
Sensor Type:
Inductive Ring Sensor
Sensor Output:
PNP / NO
Sensor Ring Diameter:
Wire Break

Certifications

Alternate SKU Numbers

IRDB.4.PSK-ST4 | IRDB-4-PSK-ST4 | IRDB4PSK-ST4 | IRDB+4+PSK-ST4 | IRDB+4+PSK-ST4 | IRDB 4 PSK,ST4 | IRDB 4 PSK.ST4 | IRDB 4 PSK ST4 | IRDB 4 PSKST4 | IRDB 4 PSKST4 | IRDB4PSKST4
Direct Replacement for di-soric Number:
IRDB 4 PSOK-IBS
