ROHRflex® Grey Multi-GFP
5032.006.070
Description

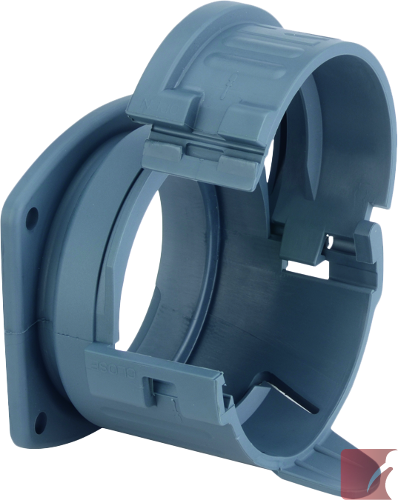

70 mm ROHRflex® Multi-GFP Grey straight flange connector, for 70 mm ID conduit, made of polyamide
IP54 is standard - IP65, IP66, IP67, IP69k sealing level available with separate specific gasket kit
-40ºC to +115ºC
Material:
- plastic PA 6 polyamide
Properties:
- resistant oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- flame resistant
- self-extinguishing, in case of fire
- heavy duty & impact resistant
Excellent for railway and robotics applications.
Use with ROHRflex® Multi conduits
Specifications
Connector Thread:
flange
Sealing Level:
IP54-69k
Colour:
Grey
Weight:
0.13 kg
Package quantity:
1
Dimensions:
φ I:
94.00
φ B:
96.00
C:
60.50
D:
80.50
Conduit OD:
79.2
Datasheet
Certifications


Alternate SKU Numbers
5032-006-070 | 5032006070 | 5032 006 070 | 5032_006_070 | 5032/006/070 | 5032,006,070 | 5032+006+070
